Διάγραμμα σύνδεσης και παράδειγμα κώδικα

Έτσι συνδέεις το Μονάδα LED Matrix MAX7219 Κόκκινο σε ένα Arduino UNO ή ESP32, με ένα παράδειγμα sketch που μπορείς να ανεβάσεις αμέσως.

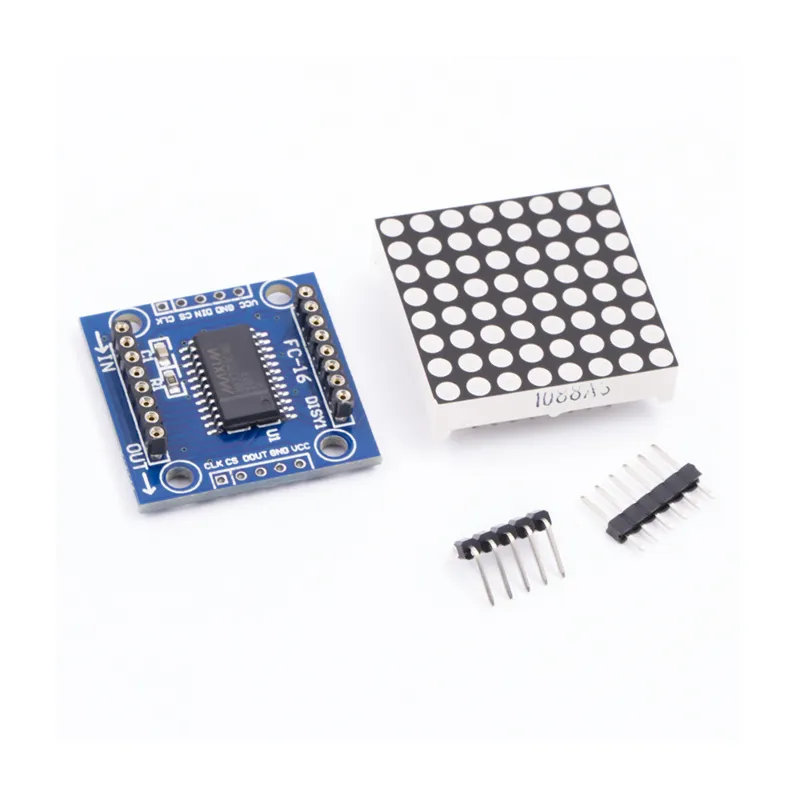

Demo οθόνης μήτρας LED 8x8 MAX7219

Αυτό το έργο δείχνει πώς να ελέγχετε μια μήτρα LED 8x8 με το chip οδήγησης MAX7219. Αρχικοποιεί την οθόνη και εναλλάσσει την προβολή ενός χαμογελαστού προσώπου, ενός εικονιδίου καρδιάς και ενός μοτίβου pixel με σάρωση.

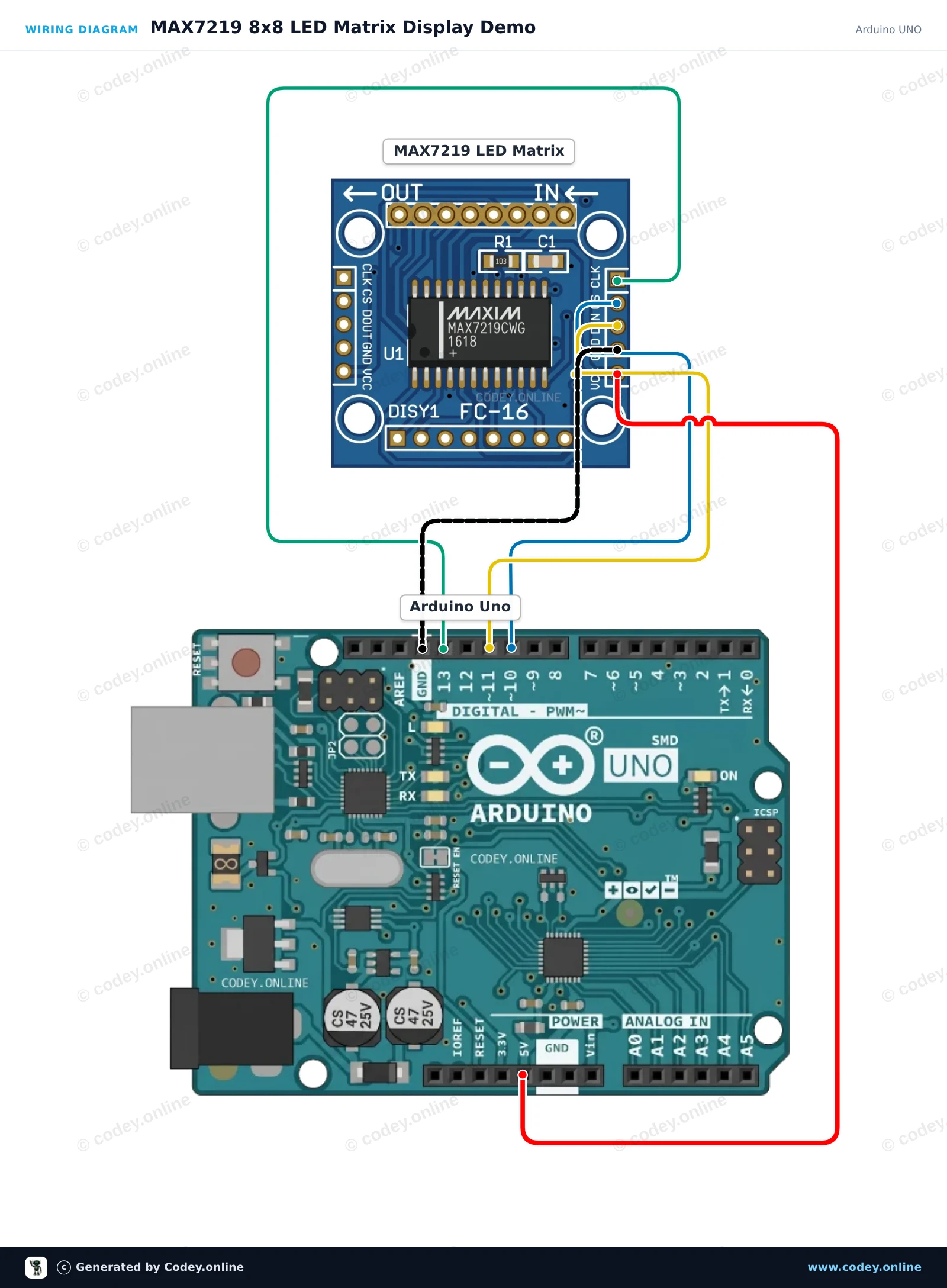

Διάγραμμα σύνδεσης: Μονάδα LED Matrix MAX7219 Κόκκινο σε ένα Arduino UNO
Διάγραμμα σύνδεσης · Κάνε κλικ για μεγέθυνση

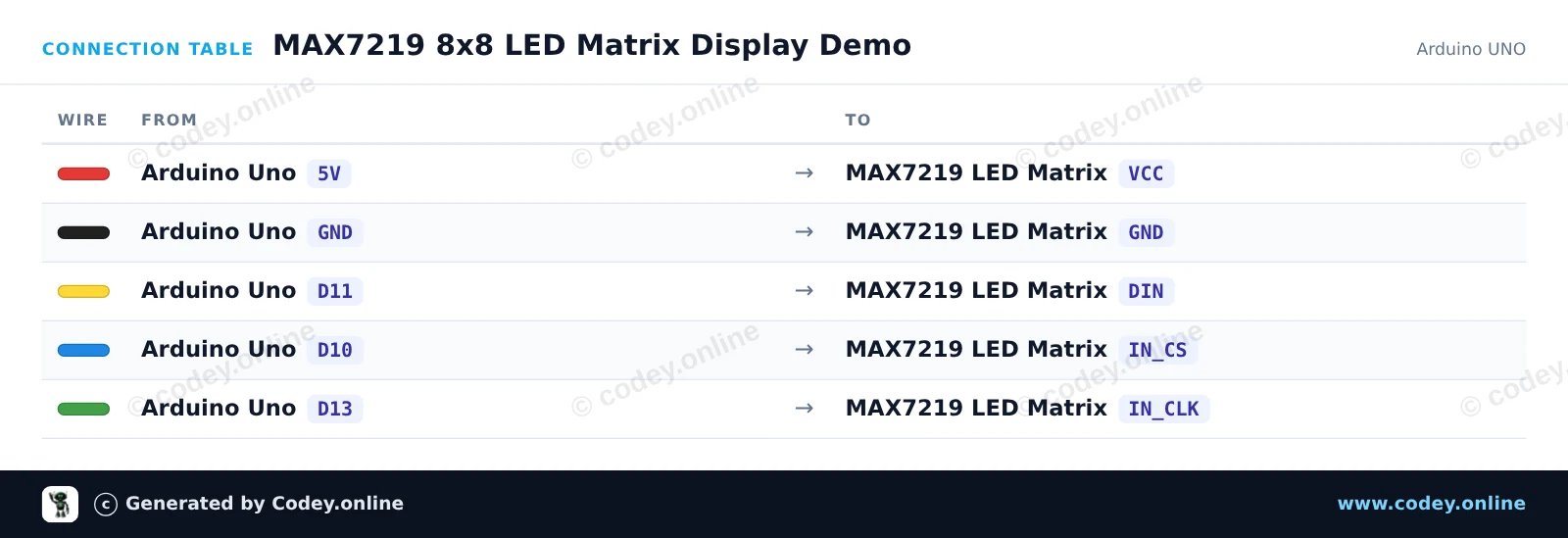

Πίνακας σύνδεσης: Μονάδα LED Matrix MAX7219 Κόκκινο σε ένα Arduino UNO
Πίνακας σύνδεσης · Κάνε κλικ για μεγέθυνση
MAX7219_8x8_LED_Matrix_Display_Demo.ino · μεταγλωττισμένο και δοκιμασμένο
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : MAX7219 8x8 LED Matrix Display Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : LED Matrix Module MAX7219
 *  Libraries : LedControl 1.0.6
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <LedControl.h>

const int DIN_PIN = 11;
const int CS_PIN  = 10;
const int CLK_PIN = 13;

LedControl lc = LedControl(DIN_PIN, CLK_PIN, CS_PIN, 1);

// 8x8 bitmap patterns
const byte SMILEY[8] = {
  0b00111100,
  0b01000010,
  0b10100101,
  0b10000001,
  0b10100101,
  0b10011001,
  0b01000010,
  0b00111100
};

const byte HEART[8] = {
  0b00000000,
  0b01100110,
  0b11111111,
  0b11111111,
  0b01111110,
  0b00111100,
  0b00011000,
  0b00000000
};

void drawPattern(const byte pattern[8]) {
  for (int row = 0; row < 8; row++) {
    lc.setRow(0, row, pattern[row]);
  }
}

void setup() {
  Serial.begin(115200);
  Serial.println(F("MAX7219 LED Matrix Demo"));

  lc.shutdown(0, false);  // Wake up display
  lc.setIntensity(0, 5);  // Brightness (0-15)
  lc.clearDisplay(0);
}

void loop() {
  // Show smiley face
  drawPattern(SMILEY);
  delay(2000);

  // Show heart
  drawPattern(HEART);
  delay(2000);

  // Clear display
  lc.clearDisplay(0);
  delay(500);

  // Scan a single pixel across all rows and columns
  for (int row = 0; row < 8; row++) {
    for (int col = 0; col < 8; col++) {
      lc.setLed(0, row, col, true);
      delay(30);
      lc.setLed(0, row, col, false);
    }
  }
  delay(500);
}

Απαραίτητες βιβλιοθήκες: LedControl 1.0.6

Wiring diagram and example code generated by Codey.online — https://www.codey.online

Demo οθόνης μήτρας LED MAX7219

Αυτό το έργο δείχνει πώς να οδηγείτε μια οθόνη μήτρας LED 8x8 MAX7219 χρησιμοποιώντας το hardware SPI interface του ESP32. Το sketch αρχικοποιεί τα registers της οθόνης και εναλλάσσει την εμφάνιση ενός εικονιδίου καρδιάς και ενός χαμογελαστού προσώπου.

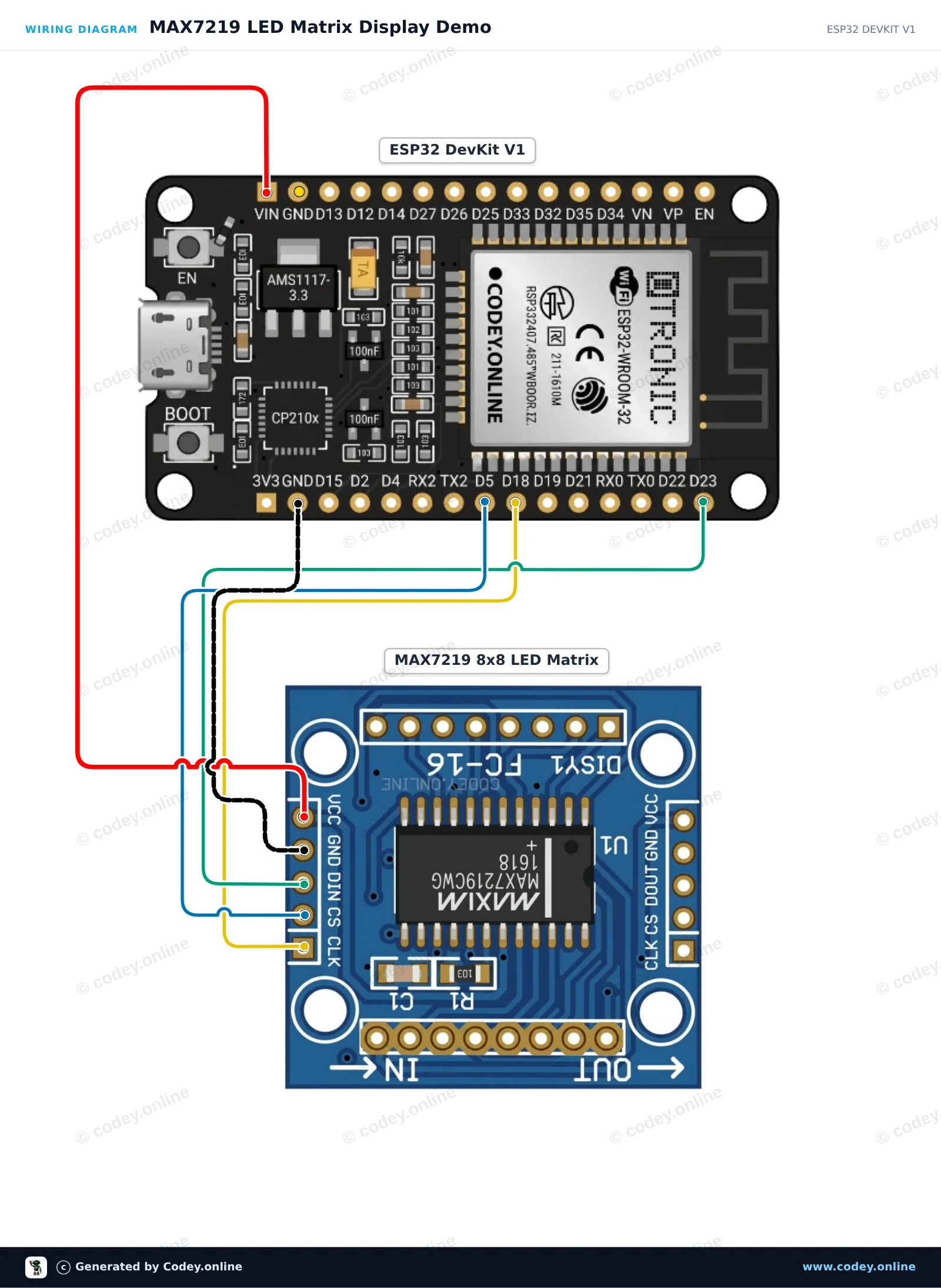

Διάγραμμα σύνδεσης: Μονάδα LED Matrix MAX7219 Κόκκινο σε ένα ESP32 DevKit V1
Διάγραμμα σύνδεσης · Κάνε κλικ για μεγέθυνση

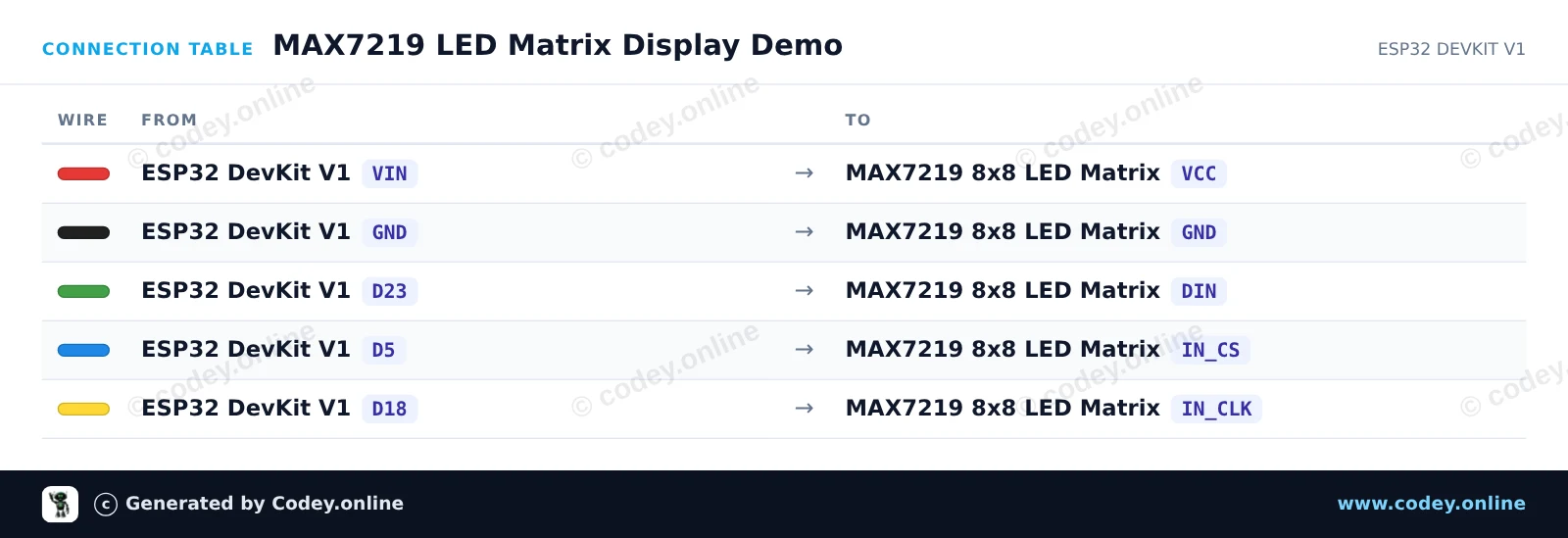

Πίνακας σύνδεσης: Μονάδα LED Matrix MAX7219 Κόκκινο σε ένα ESP32 DevKit V1
Πίνακας σύνδεσης · Κάνε κλικ για μεγέθυνση
MAX7219_LED_Matrix_Display_Demo.ino · μεταγλωττισμένο και δοκιμασμένο
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : MAX7219 LED Matrix Display Demo
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : LED Matrix Module MAX7219
 *  Libraries : none (built-in)
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <SPI.h>

const int PIN_CS = 5;

// MAX7219 register addresses
const byte REG_NOOP        = 0x00;
const byte REG_DIGIT0      = 0x01;
const byte REG_DECODEMODE  = 0x09;
const byte REG_INTENSITY   = 0x0A;
const byte REG_SCANLIMIT   = 0x0B;
const byte REG_SHUTDOWN    = 0x0C;
const byte REG_DISPLAYTEST = 0x0F;

const byte heart[8] = {
  0b00000000,
  0b01100110,
  0b11111111,
  0b11111111,
  0b11111111,
  0b01111110,
  0b00111100,
  0b00011000
};

const byte smile[8] = {
  0b00111100,
  0b01000010,
  0b10100101,
  0b10000001,
  0b10100101,
  0b10011001,
  0b01000010,
  0b00111100
};

void writeRegister(byte reg, byte data) {
  digitalWrite(PIN_CS, LOW);
  SPI.transfer(reg);
  SPI.transfer(data);
  digitalWrite(PIN_CS, HIGH);
}

void showBitmap(const byte bitmap[8]) {
  for (byte i = 0; i < 8; i++) {
    writeRegister(REG_DIGIT0 + i, bitmap[i]);
  }
}

void setup() {
  Serial.begin(115200);
  Serial.println("MAX7219 LED Matrix Demo Started");

  pinMode(PIN_CS, OUTPUT);
  digitalWrite(PIN_CS, HIGH);

  SPI.begin();

  writeRegister(REG_DISPLAYTEST, 0x00); // Normal operation
  writeRegister(REG_SCANLIMIT, 0x07);   // Display all 8 rows
  writeRegister(REG_DECODEMODE, 0x00);  // No BCD decoding (raw matrix)
  writeRegister(REG_INTENSITY, 0x04);   // Brightness (0x00 to 0x0F)
  writeRegister(REG_SHUTDOWN, 0x01);    // Wake up from shutdown
}

void loop() {
  showBitmap(heart);
  delay(1000);

  showBitmap(smile);
  delay(1000);
}

Wiring diagram and example code generated by Codey.online — https://www.codey.online
