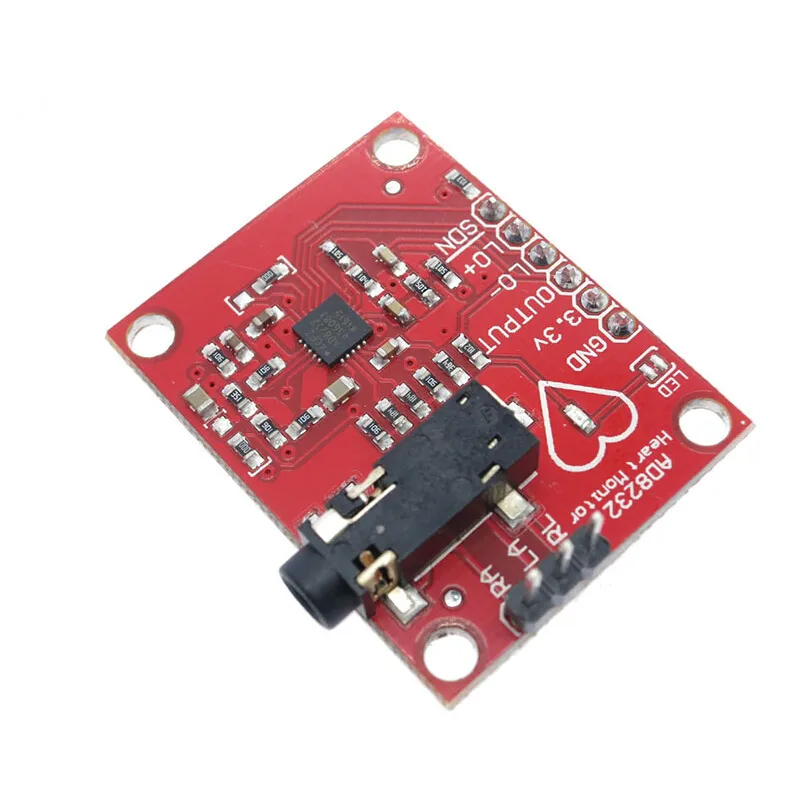

ECG Heart rate meter kit with electrode pads AD8232

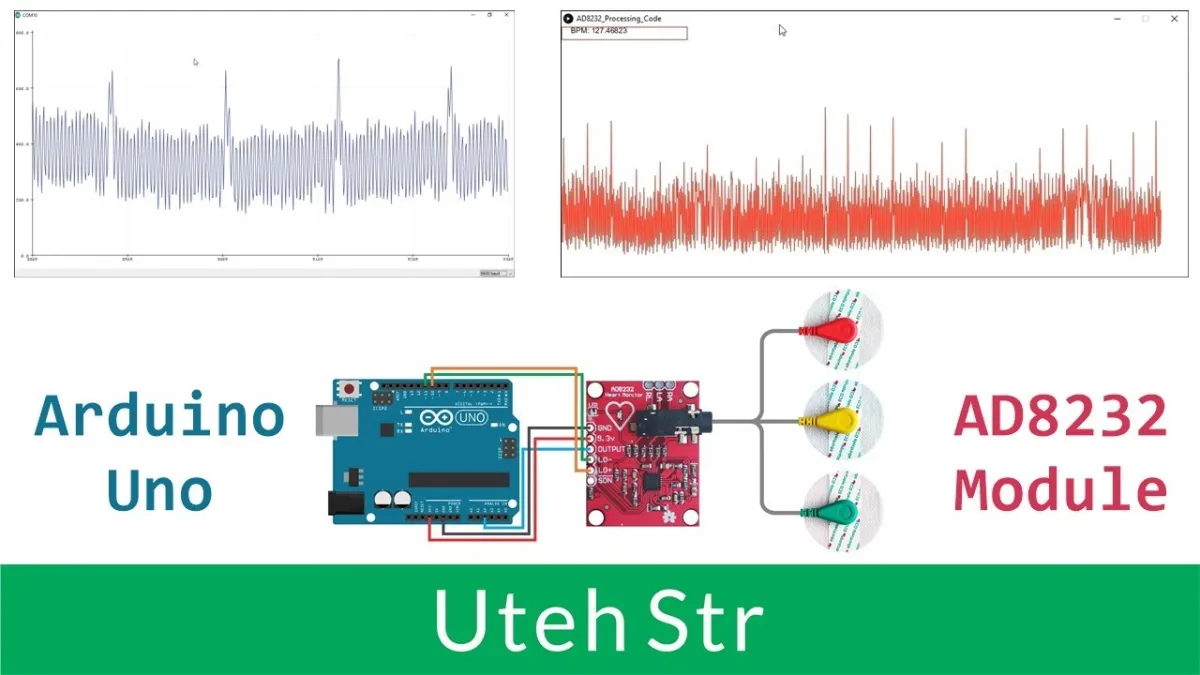

This ECG kit uses the AD8232 chip to measure your heart rate. Connect it to your Arduino or ESP32 and with the help of an OLED or TFT display you can visualize your heart rate.

This kit contains:

• AD8232 module
• 3 Disposable ECG electrodes
• Connection wire for the ECG electrode

Specifications:
Input voltage: 3.3V
PCB dimensions (lxbxh): 35.5x30.5x10.5mm
Electrode diameter: 52mm

Pinout:
Input: 3.3V (3.3V)
Analog output (OUTPUT)
LED indicator
Shutdown pin (SDN)
Leads off detection (LO- and LO+ pin)
Ground (GND)

Note: this device is not a medically certified product and is only suitable for hobby or prototyping purposes.

Dimensions
Length: 3,5cm
Width: 2,7cm
Height: 2cm
